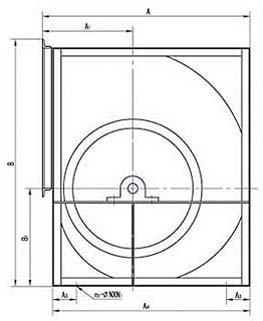

RDK系列离心通风机外型尺寸表
|
规格
|
RDK4.0
|
RDK4.5
|
RDK5.0
|
RDK5.6
|
RDK6.3
|
RDK7.1
|
RDK8.0
|
|
A
|
672
|
746
|
833
|
921
|
1023
|
1144
|
1287
|
|
A1
|
308
|
336
|
379
|
412.5
|
450.5
|
499
|
559.5
|
|
A2
|
364
|
410
|
454
|
508.5
|
572.5
|
645
|
727.5
|
|
A3
|
100
|
100
|
100
|
100
|
100
|
100
|
100
|
|
A4
|
632
|
706
|
783
|
871
|
973
|
1094
|
1237
|
|
B
|
760
|
852
|
941
|
1051
|
1189
|
1334
|
1499
|
|
B1
|
316
|
352
|
390
|
433.5
|
484.5
|
545
|
616.5
|
|
B2
|
419
|
475
|
526
|
592.5
|
671.5
|
756
|
849.5
|
|
B3
|
735
|
827
|
916
|
1026
|
1156
|
1301
|
1466
|
|
C1
|
507
|
569
|
638
|
715
|
801
|
898
|
1007
|
|
C3Xn2=C2
|
135X4=540
|
150X4=600
|
134X5=670
|
149X5=745
|
168X5=840
|
156X6=936
|
131X8=1048
|
|
C4
|
567
|
629
|
698
|
775
|
881
|
978
|
1087
|
|
L1
|
550
|
609
|
978
|
765
|
851
|
948
|
1057
|
|
L2
|
587
|
649
|
718
|
815
|
901
|
998
|
1107
|
|
L3
|
60
|
80
|
90
|
110
|
110
|
110
|
110
|
|
L
|
770
|
880
|
980
|
1090
|
1180
|
1320
|
1440
|
|
n1-ØNXN1
|
4-Ø14X21
|
4-Ø14X21
|
4-Ø14X21
|
4-Ø16X24
|
4-Ø16X24
|
4-Ø16X24
|
4-Ø18X25
|
|
n2-Ød2
|
16-Ø9
|
16-Ø9
|
20-Ø9
|
20-Ø9
|
20-Ø9
|
24-Ø9
|
32-Ø9
|
|
d
|
加强型
|
38
|
42
|
42
|
48
|
50
|
60
|
60
|
|
普通型
|
32
|
38
|
38
|
42
|
48
|
55
|
55
|
|
t
|
加强型
|
10
|
12
|
12
|
14
|
14
|
18
|
18
|
|
普通型
|
10
|
10
|
10
|
12
|
14
|
16
|
16
|
|
RDK9.0
|
RDK10.0
|
RDK11.2
|
RDK12.5
|
RDK14
|
RDK16
|
|
1439
|
1586
|
1779
|
1988
|
2228
|
2540
|
|
622
|
684.5
|
775
|
853
|
957
|
1089
|
|
817
|
901.5
|
1004
|
1135
|
1271
|
1451
|
|
100
|
100
|
100
|
100
|
100
|
100
|
|
1389
|
1536
|
1719
|
1928
|
2158
|
2470
|
|
1679
|
1844
|
2065
|
2326
|
2600
|
2960
|
|
692
|
767.5
|
856
|
961
|
1075
|
1231
|
|
954
|
1046.5
|
1174
|
1325
|
1485
|
1691
|
|
1646
|
1814
|
2030
|
2286
|
2560
|
2922
|
|
1130
|
1267
|
1422
|
1524
|
1794
|
2020
|
|
146X8=1168
|
163X8=1304
|
184X8=1472
|
175X9=1575
|
205X9=1845
|
207X10=2070
|
|
1210
|
1347
|
1522
|
1624
|
1894
|
2120
|
|
1180
|
1317
|
1485
|
1599
|
1869
|
2095
|
|
1230
|
1367
|
1548
|
1674
|
1944
|
2170
|
|
110
|
110
|
130
|
140
|
170
|
170
|
|
1580
|
1740
|
1960
|
2080
|
2400
|
2640
|
|
4-Ø18X25
|
4-Ø18X25
|
4-Ø20X35
|
4-Ø20X35
|
4-Ø20X35
|
4-Ø20X35
|
|
32-Ø9
|
32-Ø9
|
32-Ø9
|
36-Ø9
|
36-Ø9
|
40-Ø9
|
|
65
|
70
|
75
|
80
|
85
|
85
|
|
60
|
65
|
70
|
75
|
85
|
85
|
|
18
|
20
|
20
|
22
|
22
|
22
|
|
18
|
18
|
20
|
20
|
22
|
22
|
|
| |
|
